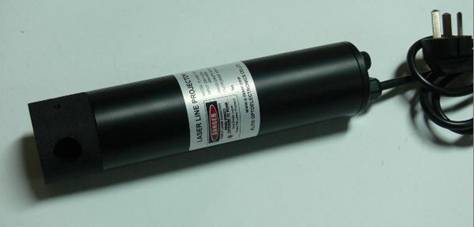

635nm Red Line Laser Projector (LC)

Key Feature

Application

RLM635LC Series Laser
Optical & Electrical Parameter
Output Wavelength	635±5nm
Output Power	1~20mW
Operating Mode	CW
Beam Mode	Line
Line Lens	Rod Lens
Working Distance	3m
Line Width	<1mm
Fan Angle	130° or 80°
Line Length (Distance: Length)	1:4 or 1:1.6
Power Stability	>90% (Voltage range： 3.0 ~ 5.0VDC )
	>85% (Temp. range： -10°C ~ 50°C)
Collimating Lens	Glass Lens
Power Supply	All in one box
Adapter	85~240VAC, 50/60Hz
Modulation	None
Mechanical Parameter
Dimensions of Laser	Φ50 × 210mm
Weight of Laser	1.3Kg
Reliability
Warm Up Time	<5 minutes
Cooling	Forced-air cooled
Operating Temperature, Case	-10℃ ~ 50℃
Storage Temperature	-40℃ ~ 80℃
Expected Operation Lifetime	10000 hours
Warranty	12 months
