Right Angle Prism

Right angle prisms are generally used to achieve a 90° light path bend. Depending on prism orientation, images will be inverted, but correct left-to-right. If a right angle prism is rotated 90°, images viewed through the prism will be erect, but reversed left-to-right. Prisms can also be used in combination for image/beam displacement.

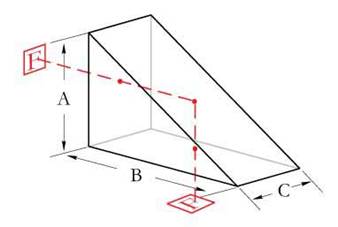

90 degree deflection occurs at the hyotenuse face.The image is erected and reversed	180 degree deflection uses with hypotenuse as the entrance and exit face.

Specification
Material	BK7 Grade A Optical Glass ^[1]
Dimension	see the table ^[2]
Dimension Tolerance	+0.0, -0.2mm
Clear Aperture	>80%
Angle Tolerance	see the table
Flatness	λ/2@632.8nm
Surface Quality	20-10 scratch and dig
Bevel	Protective Bevel
Coating	None ^[3]
Note
*[1]* Other Material (UV Fused Silica) is available upon request. *[2]* Other Dimension is available upon request. *[3]* AR or HR coating is available upon request.
