Powell Lens (Laser Line Generator Lens)

The Powell Lens is one kind of Aspherical lens, which can transform laser beam into a straight laser line. At present our Powell Lens are available in fan angles of 5°, 10°, 15°, 20°, 30°, 45°, 53°, 60°, 70°, 75°, 85°, 90° and 96°. The optical line generator lens is optimized for a Φ0.8mm, Φ1mm, Φ1.25mm, Φ1.5mm, Φ2mm, Φ2.2mm, Φ2.6mm, Φ3mm, Φ3.6mm, Φ4mm, Φ5mm and Φ7mm input laser beam diameter. And it will convert the beam into a uniform, straight line. Using this lens design will result in an impressive, even distribution of energy along the length of the line. These lenses offer excellent overall stability and line quality. They outperform cylindrical lenses that generate Gaussian beam profiles with hot-spot center points and fading edges. originally designed for laser line generators, they are now offered unmounted for a variety of custom applications, including: use in alignment, machine vision systems, construction and process control.

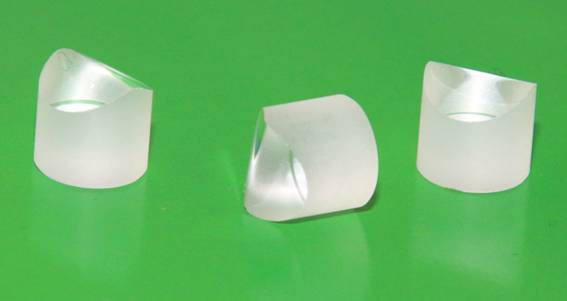

Laser Line Generator Lens, Powell Les

Key Feature
Accurate Fan Angle Excellent Uniformity Lens Diameter: 8.92±0.02mm AR coating is available Handmade with High Precision
Specification
Wavelength	Red or Green
Fan Angle	5°,10°,20°,30°,45°,53°,60°,70°,75°,85°,90°,96º
Angle tolerance	±1°
Beam Diameter @1/e²	0.8mm, 1.0mm, 1.25mm, 1.5mm, 2.0mm, 2.2mm, 2.6mm, 3.0mm, 3.6mm, 4.0mm,5.0mm,7.0mm
Line Intensity Uniformity (Pmax. – Pmin.)	≤10%, ≤25%, ≤35%, ≤45%
Dimension	Dia.8.92mm
Length	7-9mm
Note: Other Dimensions (Dia. 6mm, 6×6×6mm) are available upon request.

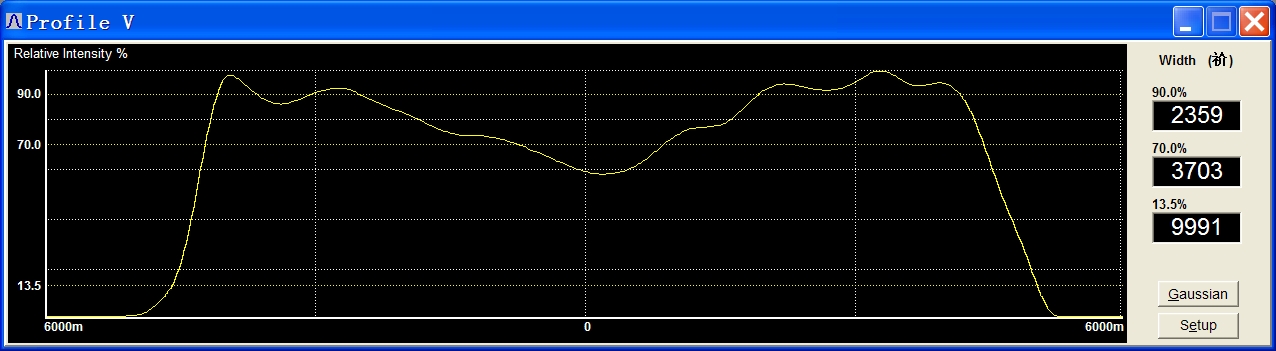

25% Uniformity (B-Grade)

45% Uniformity (D-Grade)

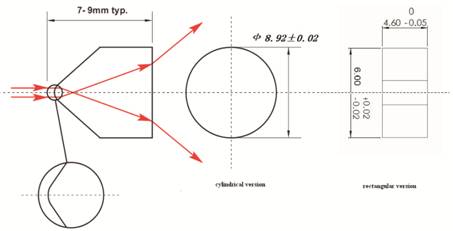

Dimension

Standard Products
Part No.	Fan Angle	Input Beam Diameter	Line Intensity Uniformity	Coating
PWL1030DN	30°	1.0mm	<45%	None
PWL2645BN	45°	2.6mm	<25%	None
PWL3020CN	20°	3.0mm	<35%	None
PWL1560BC-532	60°	1.5mm	<25%	AR @ 532nm
How to order
Model	PWLAABBEF-GGG
PWL	Powell Lens (Laser Line Generator Lens)
AA: Input Beam diameter	08-0.8mm; 10-1.0mm; 12-1.25mm; 15-1.5mm; 20-2.0mm; 22-2.2mm; 26-2.6mm; 30-3.0mm; 36-3.6mm; 40-4.0mm; 50-5.0mm; 70-7.0mm
BB: Fan angle	05-5°; 10-10°; 15-15°; 20-20°; 30-30°; 45-45°; 53-53°; 60-60°; 70-70°; 75-75°; 85-85°; 90-90°; 96-96°
E: Line Intensity Uniformity	A: <10%; B: <25%; C: <35%; D: <45%
F: Coating	C: with AR coating, both side; N: without coating
GGG: Coating Wavelegnth	AR coating @ wavelength
